BougeRV Sunflow 40A MPPT Solar Charge Controller 12V/24V

BougeRV Sunflow 40A MPPT Solar Charge Controller 12V/24V

by BougeRV
SKU ISE218
$149.99 - $149.99
$149.99
$149.99 - $149.99
$149.99
Price Match Guarantee at OffGrid Lux

At OffGrid Lux, we're committed to offering you the best prices online. That's why we have a Price Match Guarantee in place. If you find a lower price for the same product elsewhere, we'll match or beat it to ensure you get the best value.

For full details on our Price Match Guarantee, including eligibility criteria and how to request a price match, please click here to view our complete policy.

Elevate your solar system with the BougeRV Sunflow 40A MPPT solar charge controller and unlock the full potential of your panels with advanced MPPT technology. Experience enhanced safety for your lithium batteries with its exceptional features. Make the switch to this incredible charge controller for a cleaner, more sustainable energy source.



HIGHLIGHTS

FULLY COMPATIBLE WITH LiFePO4

BougeRV Sunflow 40A MPPT solar charge controller features low-temp cut-off charging (below 32℉) to protect your LiFePO4 battery, it can also restart or activate dormant 12V or 24V LiFePO4 batteries turned off due to short circuits or over-discharged.

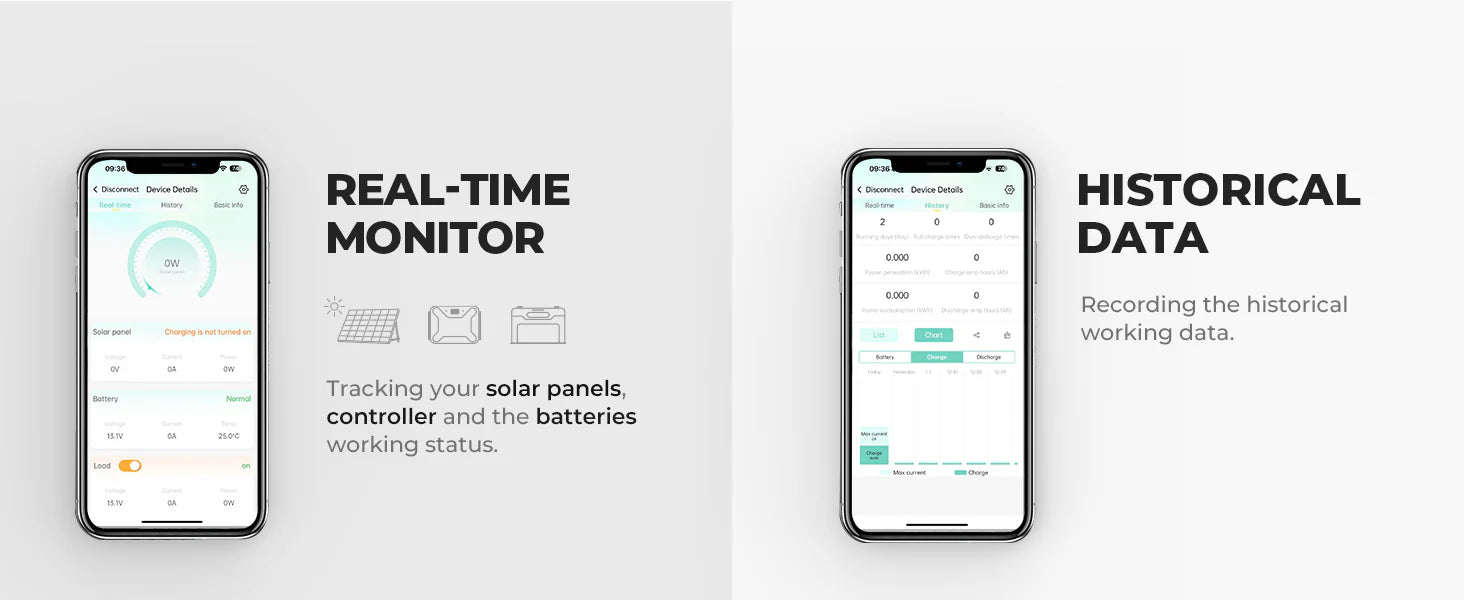

SMART LCD AND APP CONTROL

Sunflow 40 amp MPPT controller also features a remote app control, the Bluetooth range is up to 32 feet. Stay informed with the “Solar” APP that provides the solar panel, battery and load status. The controller provides 3 modes for display operation, full-featured mode, no-load mode, and viewing mode, you can select the full-featured mode to modify all adjustable parameters via the screen button if you don't want to download an app.





HIGH-EFFICIENCY CHARGE

BougeRV Sunflow 40 Amp MPPT controller can adjust the charge current from 0A to 40A. BougeRV charge controller for solar panels, its high tracking efficiency is up to 99.5%, peak conversion efficiency is up to 99%, maximizing the solar panels' output. Adopting quality aluminum heat sink, the battery regulator can dissipate heat better and minimize the power lost under full load working.

ACTIVE SHIELD

Certified by CE and RoHS. BougeRV 40A MPPT renewable energy controller features a dual MOS circuit to prevent the reverse current and reduce the heat in operation. With 6 protections, over-temperature, open-circuit, short-circuit, overload, polarity reverse prevention circuit, flow backward of current protections.

SPECIFICATIONS

SKU ISE218

System Voltage 12V/24V Battery Type LiFePO4, SLD, GEL, FLD, AGM, User Defined
Rated Charging Current 40 Amp Grounding Type Common Negative
Maximum PV Input Voltage 100V (95V protection, 90V recovery) Operating Temperature Range -31℉ to 149℉ (-35℃ to 65℃)
Maximum Input of PV System 600W/12V; 1200W/24V Protection Grade IP34
Rated Load Current 20 Amp Bluetooth Communication built-in bluetooth
Charge Current Ajust Range 0 Amp to 40 Amp Data Storage Save the last 200 days of historical data
Battery Operate Voltage Range 8V to 32V Dimension 8.94L*6.26W*2.95 inches
No Load Loss ≤10mA Weight 3.95 lbs
Product Warranty 18-month Product Type Solar Charge Controller

USER MANUAL
